The XQ Series Shapeable Track Light features COB Technology for versatile, high-performance lighting. It provides a 55° wide-angle beam with 4K projection, adjustable angles from 5° to 55°, and a 3D dimmable diaphragm for precise control. It also includes smart control for enhanced functionality.

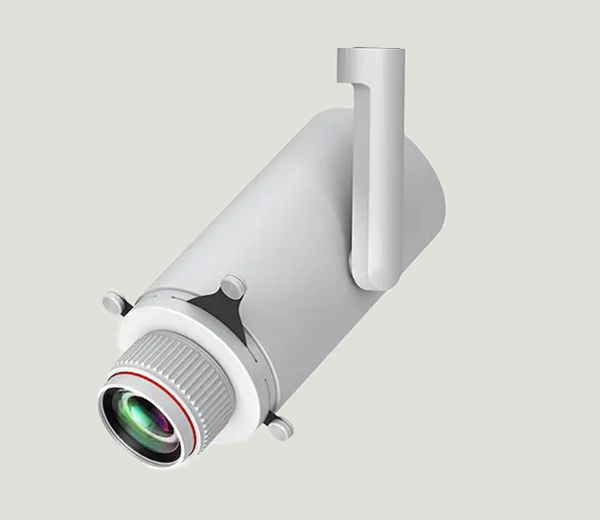

XQ Series
-
Cold Forging Integrated Radiator Design
Crafted from 1070# pure aluminum and formed through molding pressure, this design minimizes light degradation and extends the product's service life. Thermal conductivity 226W/m.360° Manual Rotation Design
High-Definition Optical Lens Design
Featuring multiple high-definition coated optical lenses, exceptional luminous efficiency, uniform spot distribution, minimal distortion.Optical-Grade Variable Aperture Design
The optical diaphragm, made from high-precision special material, ensures clear and stable performance without blurring or freezing.
-
Ideal for museums, art galleries, home decoration, hotels, restaurants, machine vision lighting, and other creative commercial lighting solutions.
-
Track Connection Options
-
![]()
MODEL A
-
![]()
Model B
-
![]()
Model C
-
![]()
Model D
Product Specifications
| Model | power | Illumination | Beam Angle | Color Kelvin | Ra | Driver | Voltage (AC) | Case Color | Qty & G.W./Ctn | CTN size | Track |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T2008I | 20W | 650-800LM | 55°(4855) 40°(4840) |
2700K 3000K 4000K |
97 | Tridonic | 220-240V | Black White |
6pcs 8kgs |
48x45x42 18.5kgs |
mono,2,3,4,6 |
| T3008I | 28W | 850-950LM | 55°(5855) 40°(5840) |
2700K 3000K 4000K |
97 | Tridonic | 220-240V | Black White |
6pcs 9kgs |
60x45x42 23kgs |
mono,2,3,4,6 |
| T4008I | 37W | 1050-1200LM | 55°(5855) 40°(5840) |
2700K 3000K 4000K |
97 | Tridonic | 220-240V | Black White |
6pcs 10kgs |
72x45x42 27kgs |
mono,2,3,4,6 |
